Speedline Fiber®
Icono
XXL Format Tailor-made format
Icono
Multihead Option of two laser sources
Icono
2D1/2 cutting option Bevel cutting option

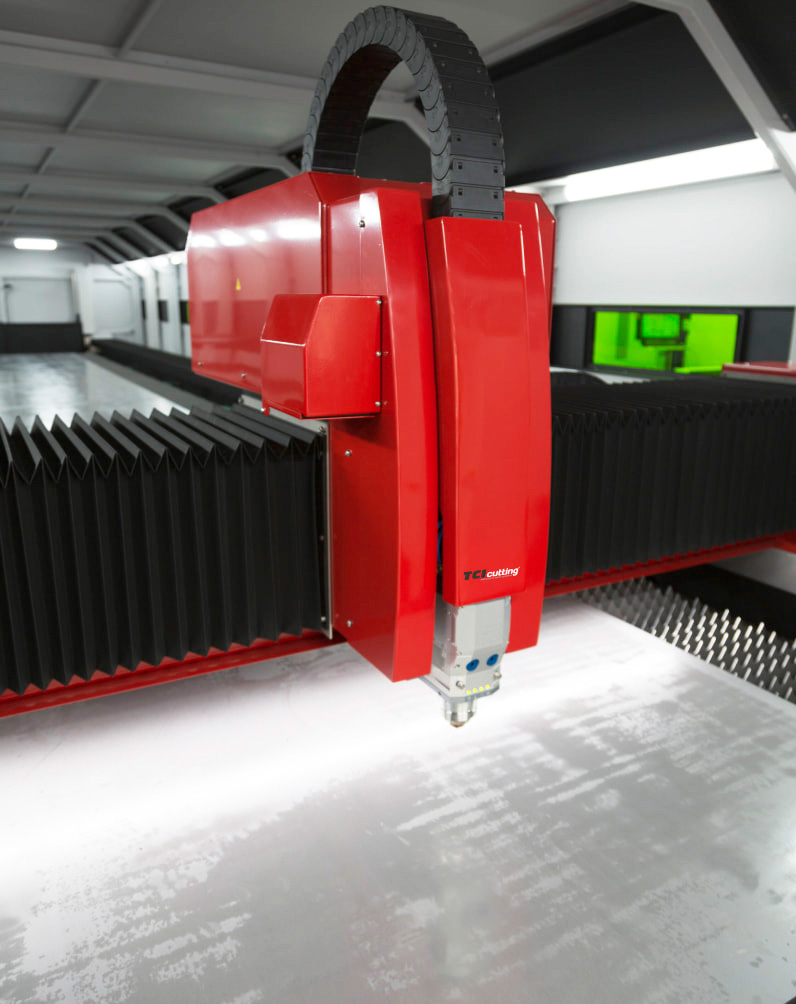

Speedline Fiber®

Our large format machine

MORE INFORMATION
LASER CUTTING

XXL Format

The Speedline Fiber® is specially developed to offer laser cutting solutions for large formats. 2D cutting and option of 2D1/2 and multihead for simultaneous cutting jobs, automatically adjustable in distance.

Up to 14 m long to meet cutting needs of XXL formats. Power according to customer’s need. Highest quality and cutting speed in thin and thick sheets.

All this with high energy efficiency that reduces electricity consumption to a minimum.

Tailor-made intelligent automation option, automated loading and unloading system and Production Management Intelligent Software for autonomous and strategic decision making.

Optimize your cutting machine and gain competitiveness.

We advise you

Get advice about the Speedline Fiber® from our specialised team.

Technical specifications

Feature20603060
Maximum load2.400 kg3.600 kg
Heads1 o 2 (2D1/2 cutting option)1 o 2 (2D1/2 cutting option)
Maximum simultaneous positioning speed170 m/min170 m/min
Maximum axial acceleration19,6 m/s2 (2G)19,6 m/s2 (2G)
Machine tolerance VDI/DGQ3441± 0.05 mm/m± 0.05 mm/m
Repeatibility± 0.025 mm± 0.025 mm
Power outputPower according to needPower according to need
Dimensions2.000x6.000x100 mm3.000x6.000x100 mm
Fully enclosed and cabined machineIncludedIncluded
Smoke extraction systemIncludedIncluded
Cooling systemIncludedIncluded
Automatic table exchangerIncludedIncluded
Automatic loader and unloaderOptionalOptional
MODELSDimensions
20602.000x6.000x100 mm
30603.000x6.000x100 mm
more information

HIGH PRODUCTIVITY

Intelligent functions

LASER CUTTING MACHINES

Technological developments

Energy Cut Gas Mix 2.0.

Up to 70% reduction of gas consumption in oxygen and nitrogen cutting.

Rage Cut 2.0.

40% faster high power laser cutting on thick carbon steel parts.

Fly Cut 3.0

Ultra fast cutting in grid and consecutive holes.

Nozzle Control 2.0

Diagnosis of nozzle condition using artificial intelligence.

Smart Camera 4.0

Intelligent camera for material detection and measurement.

Freezetec 2.0

Water-cooled laser cutting system.

Get to know all the technological developments

automation

Sutomation systems

Automation Systems®

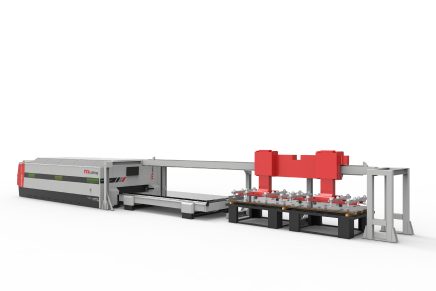

Bridge Load

Smart solutions for loading in laser cutting facilities.

view product
more information

Benefits

Why
TCI Cutting

Autonomous decision making.
