OUR LARGE FORMAT 3D CUTTING MACHINE

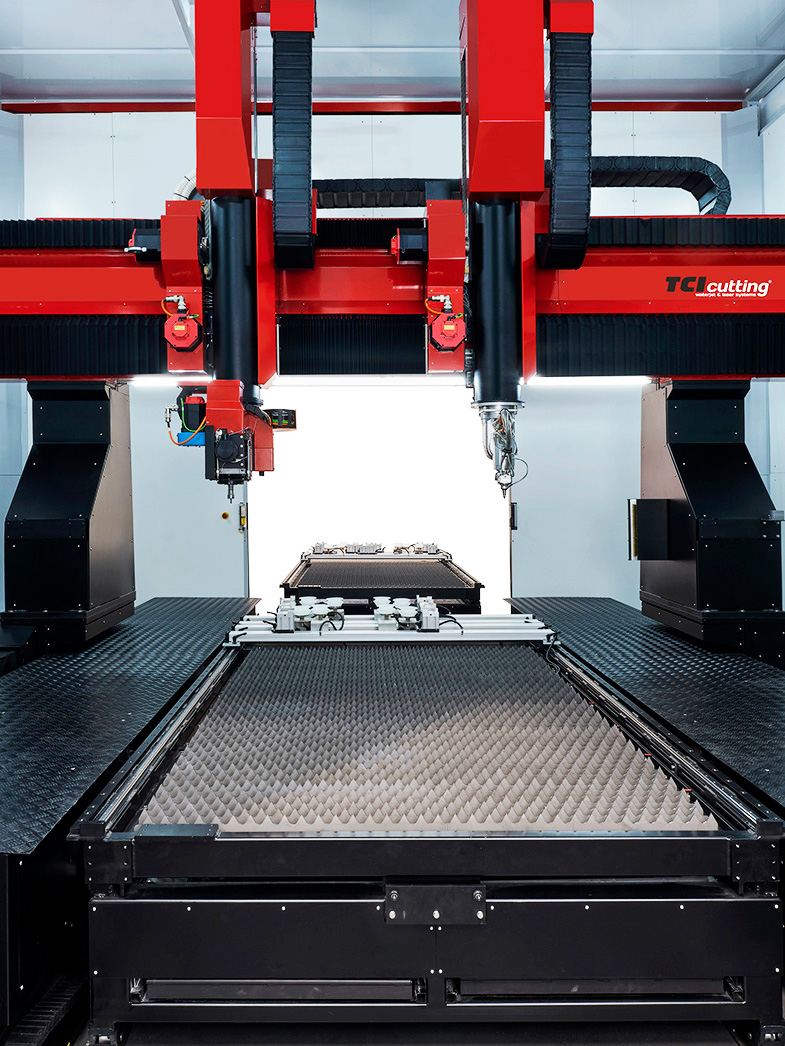

TCI Cutting Dreamline Fiber opens up a whole new world of 3D production possibilities with 5-axis laser cutting. A fully robotic system with which the production of complex cuts becomes a simple task. The powerful bridge that houses the 3D cutting head, enables the creation of cutting programs with multiple angles for the same piece, an acceleration of more than 1G and with powers from 1 kW to 4 kW. The 900 mm travel of the Z axis offers endless possibilities.
Fiber laser source technology is responsible for producing production series at high speed and at a minimum cost, this system being one of the most complete and intelligent on the market. Its connectivity with digital systems generates an unmatched production flow.
Versatility and infinity of configurations, make the Dreamline a machine capable of adapting to the needs of any sector with the option of customization, milling and threading options with 3D rotation.
Option: Production Management Intelligent Software for autonomous and strategic decision making.
Optimize your cutting machine and gain competitiveness.
|Maximum load||600 kg|
|Maximum simultaneous positioning speed||85 m/min|
|Maximum axial acceleration||4,9 m/s2|
|Machine tolerance VDI/DGQ3441||± 0.05 mm/m|
|Repeatibility||± 0.025 mm|
|Power output||De 1 kW a 4 kW|
|Axes (X, Y, Z)||3.000 x 2.400 x 900 mm|
|Gap Dedicated Axis (W)||Inclusive|
|Measurement System||Optical absolute rulers (Optional)|
SoftwarePredictive technical assistance.
automationEfficiency. One client, one solution.
technical assistanceMaximum efficiency without workdowns. Expert team.
TrainingTaylor-made training certificate programs.
