Smarttube Fiber®
Icono
High productivity Multiple loaders for profiles and tubes
Icono
Profiles and Tubes Cutting Open or closed profiles
Icono
Customization Semi-Automatic or automatic loading. 2D/3D cutting heads

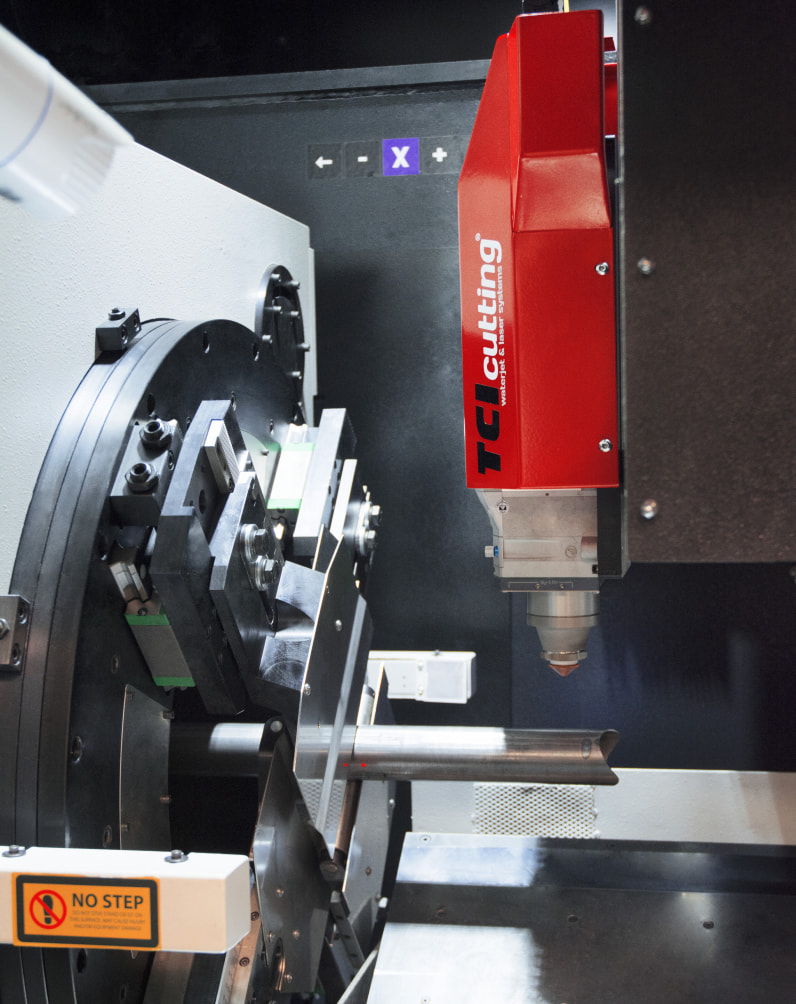

Smarttube Fiber®

Our machine for profiles and tubes cutting

MORE INFORMATION
LASER CUTTING

Profiles and Tubes Cutting

The fiber laser technology is now available for profiles and tubes cutting, elements widely used in a wide range of sectors. Fully automated loading and unloading system with continuous speed and minimum maintenance. The new TCI Cutting system is capable of processing tubes and profiles from ø20 mm to ø220 mm without any change in tooling for all types of cuts and lengths. This increases the operating time of the cutting machine and ensures a highly productive flow without stops. In addition, this new laser cutting system for profiles and tubes allows cutting both open, with the five-axis head, and closed profiles.

Fiber laser cutting technology for tubes and profiles makes it possible to eliminate processes before and after cutting that were necessary until now, which means saving time and increasing competitiveness and the opportunity to access market niches and new sectors.

With unlimited capacities and possibilities, this machine encompasses a wide range of profiles, with automatic or semi-automatic loading up to 12 meters. It can make a multiple unloading controlled by the CNC (Central Numeric Control).

The technical characteristics of the TCI Cutting Smarttube Fiber® make it the most flexible and versatile of the market, as it offers a complete solution with low energy consumptions and a unique cutting quality.

We advise you

Get advice on Smarttube Fiber® with our specialised team.

Technical specifications

Feature120220
Maximum load20 kg/m36 kg/m
Heads1 - 2D1 (2D o 3D)
Maximum simultaneous positioning speed50 m/min 50 m/min
Maximum axial acceleration1G 1G
Machine tolerance VDI/DGQ3441± 0.05 mm/m ± 0.05 mm/m
Repeatibility± 0.025 mm ± 0.025 mm
Power output From 1 kW to 4 kW From 1 kW to 4 kW
Dimensions6.000 mm to 12.000 mm 6.000 mm to 12.000 mm
Supported formats Circular, square and rectangular Circular, square and rectangular
Tube dimensions ø20 a ø120 mm ø20 a ø220 mm
Maximum warehouse load 80 Kg/m (ø600 mm) 100 Kg/m (ø600 mm)
Automatic chip removal OptionalOptional
Extraction of cut pieces OptionalOptional
MODELSDimensions
1206.000 mm x ø220 mm
2206.000 mm x ø220 mm
MORE INFORMATION

HIGH PRODUCTIVITY

Smart features

WATERJET CUTTING MACHINES

Technological developments

Anticollision System 2.0®

Cutting path optimisation.

Cut Control 3.0®

Non-return abrasive system.

Smart Fit 2.0®

Automatic adjustment for optimum speed.

5X Direct Drive Infinite Loop 4.0®

Infinite rotation without rewinding.

Mapping Height Control 2.0®

Position control of the workpiece plane.

Dynamic Drilling 3.0®

Dynamic perforation in thicknesses greater than 3mm.
