Profiles and Tubes Cutting

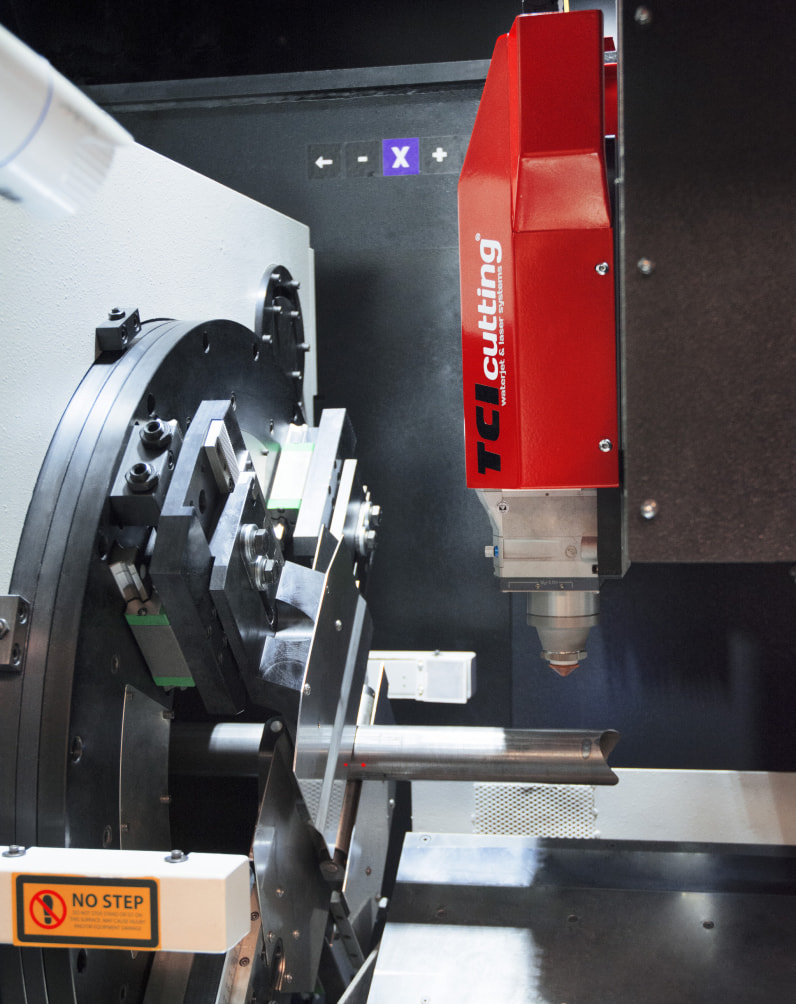

The fiber laser technology is now available for profiles and tubes cutting, elements widely used in a wide range of sectors. Fully automated loading and unloading system with continuous speed and minimum maintenance. The new TCI Cutting system is capable of processing tubes and profiles from ø20 mm to ø220 mm without any change in tooling for all types of cuts and lengths. This increases the operating time of the cutting machine and ensures a highly productive flow without stops. In addition, this new laser cutting system for profiles and tubes allows cutting both open, with the five-axis head, and closed profiles.
Fiber laser cutting technology for tubes and profiles makes it possible to eliminate processes before and after cutting that were necessary until now, which means saving time and increasing competitiveness and the opportunity to access market niches and new sectors.
With unlimited capacities and possibilities, this machine encompasses a wide range of profiles, with automatic or semi-automatic loading up to 12 meters. It can make a multiple unloading controlled by the CNC (Central Numeric Control).
The technical characteristics of the TCI Cutting Smarttube Fiber® make it the most flexible and versatile of the market, as it offers a complete solution with low energy consumptions and a unique cutting quality.
Technical specifications
| Feature | 120 | 220 |
|---|---|---|
| Maximum load | 20 kg/m 13.44 lb/ft | 36 kg/m 24.19 lb/ft |
| Heads | 1 - 2D | 1 (2D o 3D) |
| Maximum simultaneous positioning speed | 50 m/min 164.04 ft/min | 50 m/min 164.04 ft/min |
| Maximum axial acceleration | 1G | 1G |
| Machine tolerance VDI/DGQ3441 | ± 0.05 mm/m ± 2 mils/ft | ± 0.05 mm/m ± 2 mils/ft |
| Repeatibility | ± 0.025 mm ± 1 mils | ± 0.025 mm ± 1 mils |
| Power output | From 1 kW to 6 kW | From 1 kW to 6 kW |
| Dimensions | 6.000 mm to 12.000 mm 240 to 480 in | 6.000 mm to 12.000 mm 240 to 480 in |
| Supported formats | Circular, square and rectangular tubes. Open and closed profiles | Circular, square and rectangular tubes. Open and closed profiles |
| Tube dimensions | ø20 a ø120 mm 0.79 to 4.72 diameter in | ø20 a ø120 mm 0.79 to 4.72 diameter in |
| Maximum warehouse load | 80 Kg/m (ø600 mm) 54 lb/ft (ø23.6 in) | 100 Kg/m (ø600 mm) 67 lb/ft (ø23.6 in)/span> |
| Automatic chip removal | Optional | Optional |
| Extraction of cut pieces | Optional | Optional |
| MODELS | Dimensions |
|---|---|
| 120 | 6.000 mm x ø220 mm 240 in x ø4.72 in |
| 220 | 6.000 mm x ø220 mm 240 in x ø4.72 in |
