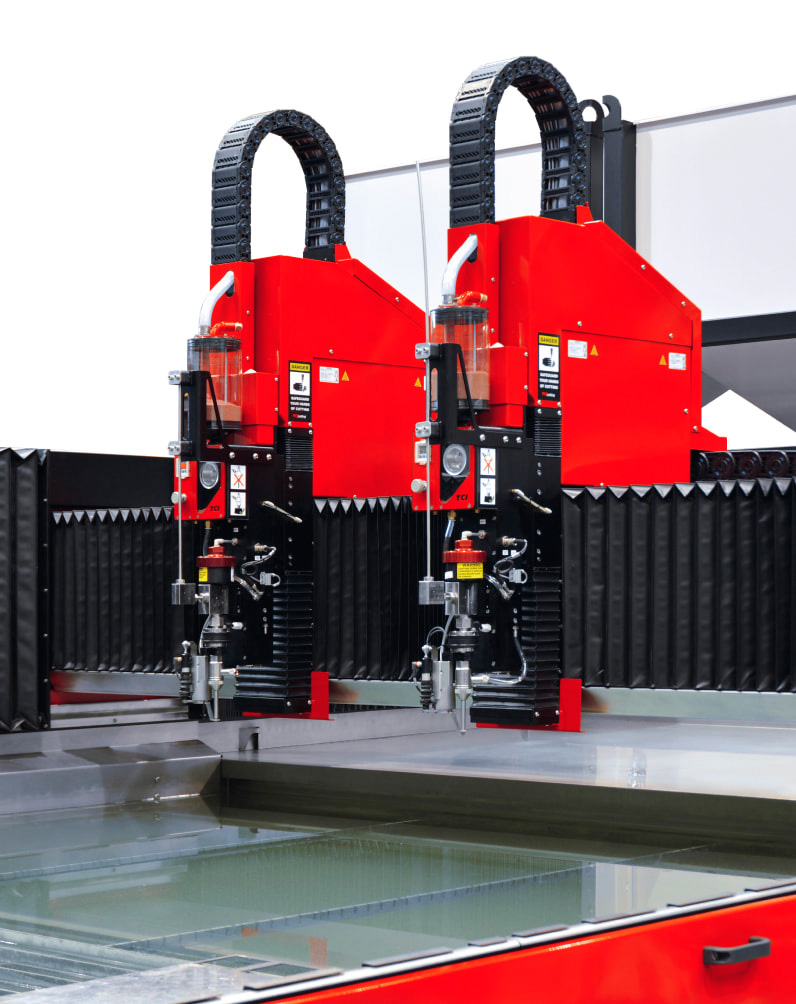

Option of a second independent cutting table or to enlarge the main cutting table. Maximize the performance. Option of enclosure.Minimum space. Possibility of cutting with two independent cutting arms and two different work areas.
Technical specifications
Feature | SM-M 3015 | SM-M 3020 | SM-M 4020 | SM-M 6020 |
---|---|---|---|---|
Maximum thickness of the part | 200 mm | 200 mm | 200 mm | 200 mm |
Maximum permitted load | 790 kg/m2 | 790 kg/m2 | 790 kg/m2 | 790 kg/m2 |
Number of cutting heads | 1 to 2 | 1 to 2 | 1 to 2 | 1 to 2 |
Simultaneous max positioning speed | 85 m/min | 85 m/min | 85 m/min | 85 m/min |
Maximum cutting speed | 20 m/min | 20 m/min | 20 m/min | 20 m/min |
Machine tolerance according to VDI / DGQ 3441 | ± 0.05 mm/m | ± 0.05 mm/m | ± 0.05 mm/m | ± 0.05 mm/m |
Repetition accuracy | ± 0.025 mm | ± 0.025 mm | ± 0.025 mm | ± 0.025 mm |
DimeDimensionsnsiones | 3000x1500x200 mm | 3000x2000x200 mm | 4000x2000x200 mm | 6000x2000x200 mm |
MODELS | Dimensions |
---|---|
SM-M 3015 | 3000x1500x200 mm |
SM-M 3020 | 3000x2000x200 mm |
SM-M 4020 | 4000x2000x200 mm |
SM-M 6020 | 6000x2000x200 mm |
RELIABILITY
Smart features
WATERJET CUTTING MACHINES
Technological developments
Anticollision System 2.0®
Cutting path optimisation.
Cut Control 3.0®
Non-return abrasive system.
Smart Fit 2.0®
Automatic adjustment for optimum speed.
5X Direct Drive Infinite Loop 4.0®
Infinite rotation without rewinding.
Mapping Height Control 2.0®
Position control of the workpiece plane.
Dynamic Drilling 3.0®
Dynamic perforation in thicknesses greater than 3mm.
Benefits
Why
TCI Cutting
Autonomous decision making.
