XXL FORMAT

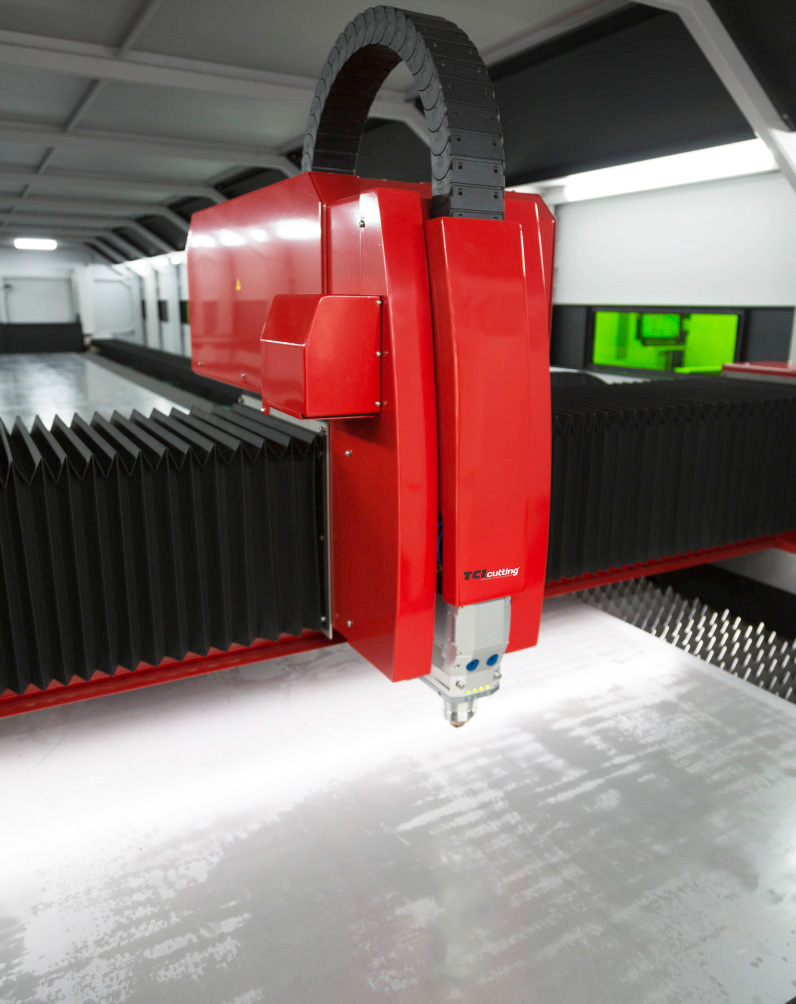

The Speedline series is specially developed to offer laser cutting solutions for large formats. 2D cutting and option of 2D1/2 and multihead for simultaneous cutting jobs, automatically adjustable in distance.
Up to 14 m long to meet cutting needs of XXL formats. Up to 20 kW of power. Highest quality and cutting speed in thin and thick sheets.
All this with high energy efficiency that reduces electricity consumption to a minimum.

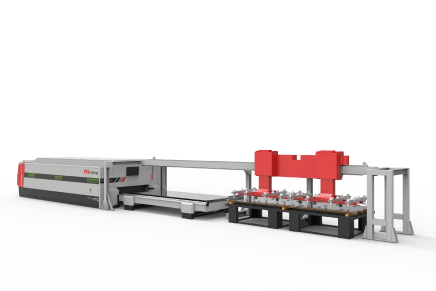

Tailor-made intelligent automation option, automated loading and unloading system and Production Management Intelligent Software for autonomous and strategic decision making.
Optimize your cutting machine and gain competitiveness.
Technical specifications
| Feature | 2060 | 3060 |
|---|---|---|
| Maximum load | 2.400 kg | 3.600 kg |
| Heads | 1 or 2 (2D1/2 cutting option) | 1 or 2 (2D1/2 cutting option) |
| Maximum simultaneous positioning speed | 170 m/min | 170 m/min |
| Maximum axial acceleration | 19,6 m/s2 (2G) | 19,6 m/s2 (2G) |
| Machine tolerance VDI/DGQ3441 | ± 0.05 mm/m | ± 0.05 mm/m |
| Repeatibility | ± 0.025 mm | ± 0.025 mm |
| Power output | Power according to need | Power according to need |
| Dimensions | 2.000x6.000x100 mm | 3.000x6.000x100 mm |
| Fully enclosed and cabined machine | Included | Included |
| Smoke extraction system | Included | Included |
| Cooling system | Incluido | Included |
| Automatic table exchanger | Included | Included |
| Automatic loader and unloader | Optional | Optional |
| MODELS | Dimensions |
|---|---|
| 2060 | 2.000x6.000x100 mm |
| 3060 | 3.000x6.000x100 mm |
HIGH PRODUCTIVITY
Intelligent functions
LASER CUTTING MACHINES
Technological developments
Energy Cut Gas Mix 2.0.
Up to 70% reduction of gas consumption in oxygen and nitrogen cutting.
Rage Cut 2.0.
40% faster high power laser cutting on thick carbon steel parts.
Fly Cut 3.0
Ultra fast cutting in grid and consecutive holes.
Nozzle Control 2.0
Diagnosis of nozzle condition using artificial intelligence.
Smart Camera 4.0
Intelligent camera for material detection and measurement.
Freezetec 2.0
Water-cooled laser cutting system
automation
Sutomation systems
Automation Systems®
Bridge Load
Smart solutions for loading in laser cutting facilities.
Benefits
Why
TCI Cutting
Smart software
Autonomous decision making.
Custom automation
Efficiency. One client, one solution.
MAS Concept®
Comprehensive 360º solution. 24 hours of productivity in the factory.
TCI Training
ailor-made certified training programmes.
Implementation of production processes
Optimisation. Total integration. Industry 4.0.
Predictive technical assistance
Maximum efficiency without downtime. Experts team.
BE PART OF THE FUTURE
Clients around the World
Download technical sheet

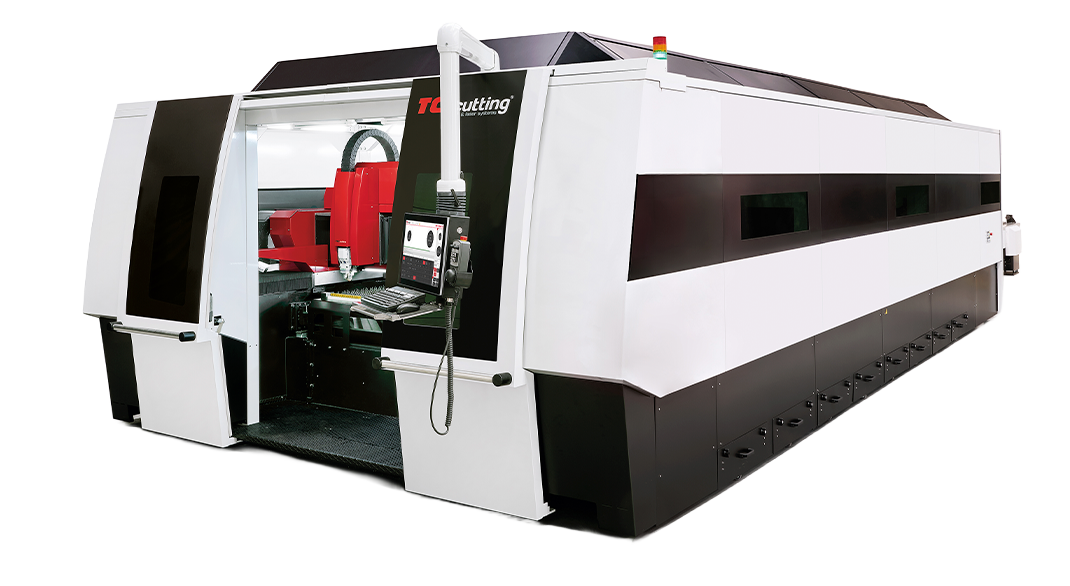

Speedline Fiber®
