BP-M®

OUR MOST COMPACT MACHINE

To the advantages of the standard series is added the plus of flexibility for customers cutting thick and large-area materials. Strength and flexibility.

Strength

Strength

Bridge type construction

Modular

Modular

Expandable in length and scalable in resources. Clean and quiet working conditions

2D<sup>1/2</sup> cutting

2D1/2 cutting

Two flats and one oblique

Technical
Specifications

FeatureBP-M 2040BP-M 3020BP-M 3060BP-M 3080BP-M 30120BP-M 4060BP-M 4080BP-M 40120
Maximum thickness of the part200 mm200 mm200 mm200 mm200 mm200 mm200 mm200 mm
Maximum permitted load1.000 kg/m21.000 kg/m21.000 kg/m21.000 kg/m21.000 kg/m21.000 kg/m21.000 kg/m21.000 kg/m2

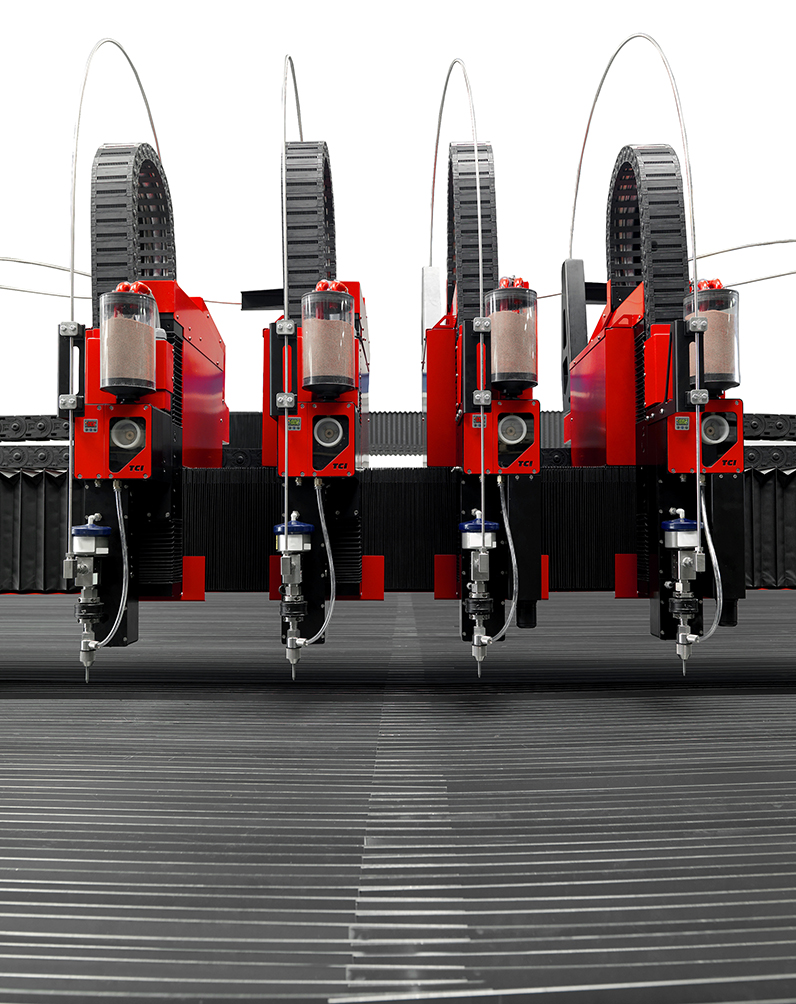

Number of cutting heads1 to 41 to 41 to 41 to 41 to 41 to 41 to 41 to 4
Maximum number of bridges 44444444
Simultaneous max positioning speed85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min
Maximum cutting speed20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min
Machine tolerance according to VDI / DGQ 3441± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m
Repetition accuracy± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm
Dimensions2000x4000x200 mm3000x2000x200 mm3000x6000x200 mm3000x8000x200 mm3000x12000x200 mm4000x6000x200 mm4000x8000x200 mm4000x12000x200 mm
MODELSDimensions
BP-M 20402000x4000x200 mm
BP-M 30203000x2000x200 mm
BP-M 30603000x6000x200 mm
BP-M 30803000x8000x200 mm
BP-M 301203000x12000x200 mm
BP-M 40604000x6000x200 mm
BP-M 40804000x8000x200 mm
BP-M 401204000x12000x200 mm
