Strength Bridge type construction

Modular Expandable in length and scalable in resources. Clean and quiet working conditions

2D^1/2cutting Two flats and one oblique

BP-M®

Our 2D cutting machine^1/2

more information

WATERJET CUTTING

2D^1/2 Cutting

To the advantages of the standard series is added the plus of flexibility for customers cutting thick and large-area materials. Strength and flexibility.

We advise you

Get advice on the BP-M® Series from our specialized team.

CONTACT

Technical Data
MODELS

Feature	BP-M 2040	BP-M 3020	BP-M 3060	BP-M 3080	BP-M 30120	BP-M 4060	BP-M 4080	BP-M 40120
Maximum thickness of the part	200 mm4000x12000x200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in
Maximum permitted load	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²	1.000 kg/m² 204.82 lb/ft²

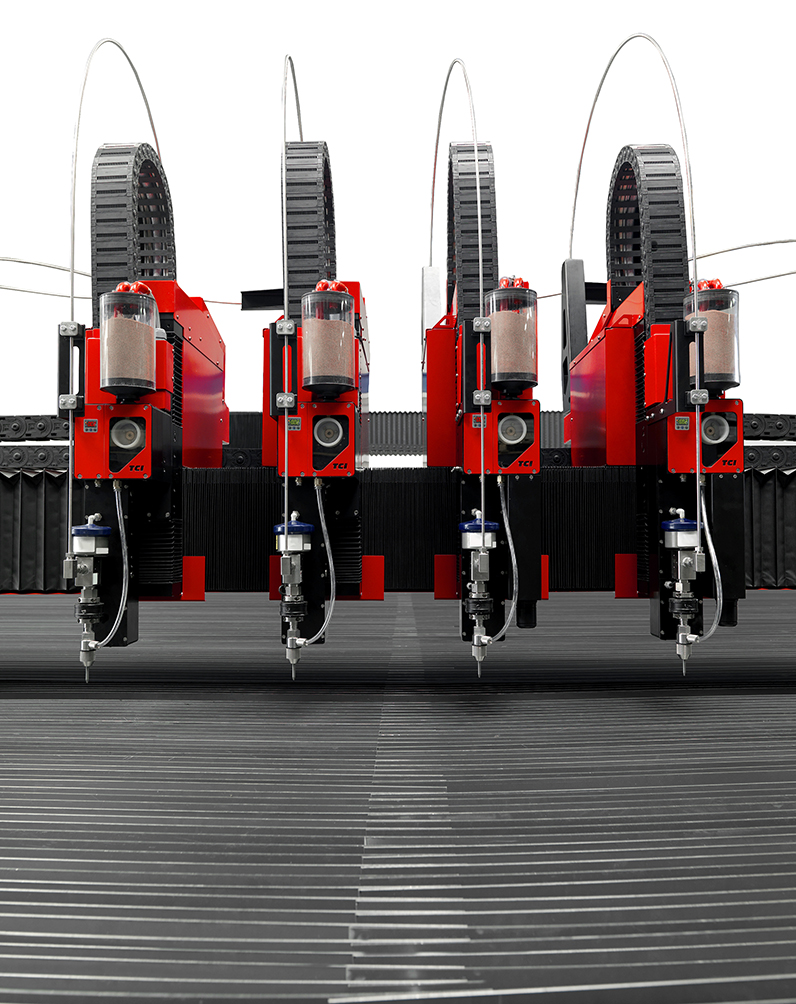

Number of cutting heads	1 a 4	1 a 4	1 a 4	1 a 4	1 a 4	1 a 4	1 a 4	1 a 4
Maximum number of bridges		4	4	4	4	4	4	4
Simultaneous max positioning speed	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min
Maximum cutting speed	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min
Machine tolerance according to VDI / DGQ 3441	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft	± 0.05 mm/m ± 2 mils/ft
Repetition accuracy	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils	± 0.025 mm ± 1 mils
Dimensions	2000x4000x200 mm 80x160x7.87 in	3000x2000x200 mm 120x80x7.87 in	3000x6000x200 mm 120x240x7.87 in	3000x8000x200 mm 120x320x7.87 in	3000x12000x200 mm 120x480x7.87 in	4000x6000x200 mm 160x240x7.87 in	4000x8000x200 mm 160x320x7.87 in	4000x12000x200 mm 160x480x7.87 in

MODELS	Dimensions
BP-M 2040	2000x4000x200 mm 80x160x7.87 in
BP-M 3020	3000x2000x200 mm 120x80x7.87 in
BP-M 3060	3000x6000x200 mm 120x240x7.87 in
BP-M 3080	3000x8000x200 mm 120x320x7.87 in
BP-M 30120	3000x12000x200 mm 120x480x7.87 in
BP-M 4060	4000x6000x200 mm 160x240x7.87 in
BP-M 4080	4000x8000x200 mm 160x320x7.87 in
BP-M 40120	4000x12000x200 mm 160x480x7.87 in
