Mach Five®

Our most precise machine

MORE INFORMATION

BENDING MACHINES

High precision

Numerical control with color graphics. Safety photocells. Internal silent pump. Hydraulic system regulated by synchronized valves. High precision optical lines.

Adjustable quick tie. Tooling, hardened and ground for quick tool adjustment. System of rear stops (fingers) with double linear guide, Led contact indicator.

Active hydraulic compensation system. Electrical panel with high quality components. Start & Stop system.

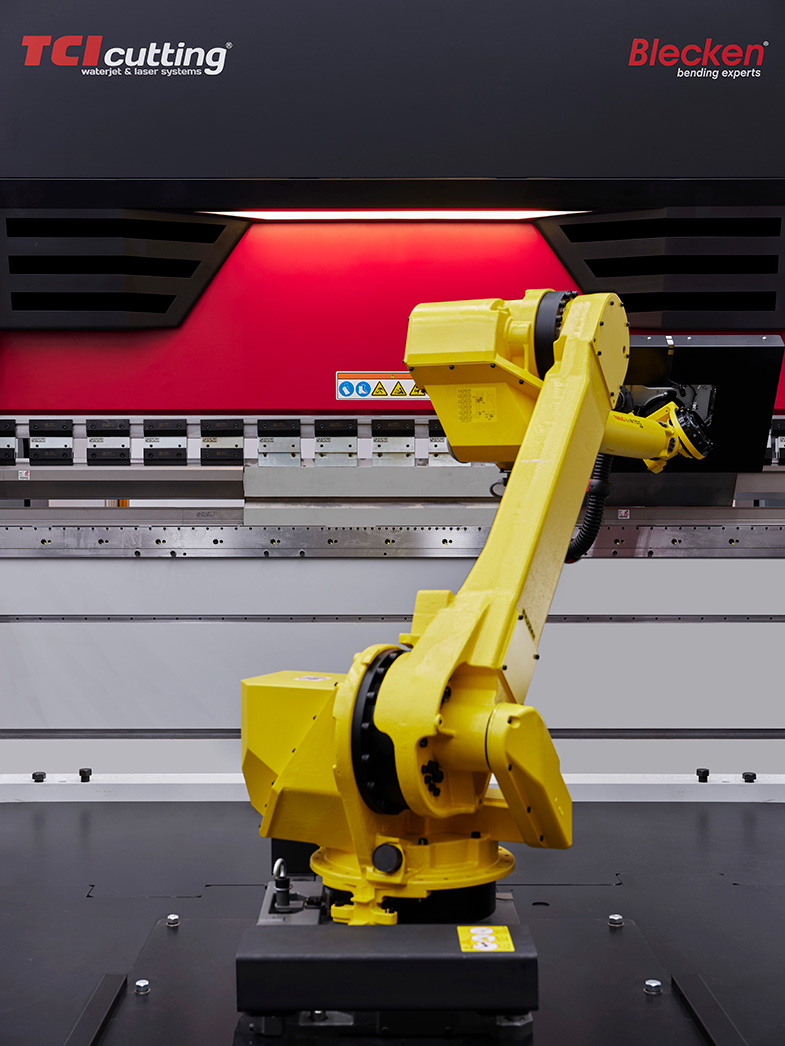

Hybrid system for energy saving. Model prepared for all types of automation.

We advise you

Get advice on Mach Five® with our specialized team.

CONTACT

Technical Data
MODELS

Feature	Mach Five 30T	Mach Five 50T	Mach Five 70T	Mach Five 110T	Mach Five 170T	Mach Five 250T	Mach Five 320T
Pressing force	30 ton	50/50 ton	70 ton	110/110/110/110 ton	170/170/170/170/170 ton	250/250/250/50 ton	320/320/320/320 ton
Bending length	1250 mm 50 in	1670/2100 mm 66/83 in	2600 mm 103 in	2600/3100/4100/5100/6100 mm 103/122/162/201/240 in	2600/3100/4100/5100/6100 mm 103/122/162/201/240 in	3100/4100/5100/6100 mm 103/122/162/201/240 in	3100/4100/5100/6100 mm 103/122/162/201/240 in
Distance between colums	1200 mm 48 in	1300/1600 mm 51/63 in	2100 mm 83 in	2100/2600/3600/4600/5600 mm 83/103/142/181/220 in	2100/2600/3600/4600/5600 mm 83/103/142/181/220 in	2600/3600/4600/5600 mm 103/142/181/220 in	2600/3600/4600/5600 mm 103/142/181/220 in
Throat depth*	0	300/300 mm 103/142/181/220 in	400 mm 16 in	400/400/400/400/500 mm 16/16/16/16/20 in	500/500/500/500/500 mm 20/20/20/20/20 in	500/500/500/500 mm 20/20/20/20 in	500/500/500/500 mm 20/20/20/20 in
Travel of cylinder/piston	150	200/200	300	300/300/300/300/300	300/300/300/300/300	300/300/300/300	300/300/300/300
Maximum table-beam distance	340 mm 13.6 in	400/400 mm 16/16 in	500 mm 20 in	500/500/500/500/500 mm 20/20/20/20/20 in	500/500/500/500/500 mm 20/20/20/20/20 in	500/500/500 mm 20/20/20 in	500/500/500/500 mm 20/20/20/20 in
Back gauge range	800 mm 32 in	800/800 mm 32/32 in	800 mm 32 in	800/800/800/800/800 mm 32/32/32/32/32 in	800/800/800/800/800 mm 32/32/32/32/32 in	800/800/800/800/800 mm 32/32/32/32 in0/800/800/800 mm	500/500/500/500 mm 20/20/20/20 in
Working height	905 mm 36 in	950/950 mm 37.4/37.4 in	950 mm 37.4 in	950/950/950/950/1075 mm 37.4/37.4/37.4/37.4/42.3 in in	950/950/950/950/1075 mm 37.4/37.4/37.4/37.4/42.3 in in	965/965/985/1075 mm 38/38/38.8/42.3 in	965/965/965/965 mm 38/38/38/38 in
Fast approach	200 mm/seg. 7.87 in/s	20/200 mm/seg. 0.78/7.87 in/s	200 mm/seg. 7.87 in/s	200/200/200/180/150 mm/seg. 7.87 /7.87 /7.87 /7/5.9 in/s	200/200/200/180/150 mm/seg. 7.87 /7.87 /7.87 /7/5.9 in/s	200/200/160/150 mm/seg. 7.87/7.87/6.3/5.9 in/s	180/180/150/150 mm/seg." 7/7/5.9/5.9 in/s
Maximum work rate	0-10 mm/seg. 0-0.4 in/s	0-10/0-10 mm/seg. 0-0.4 in/s	0-10 mm/seg. 0-0.4 in/s	0-10/0-1/0-10/0-10/0-10 mm/seg. 0-0.4 in/s	0-10/0-10/0-10/0-10/0-10 mm/seg. 0-0.4 in/s	0-10/0-10/0-10/0-10 mm/seg. 0-0.4 in/s	0-8,5/0-8,5/0-8,5/0-8,5 mm/seg. 0-0.33 in/s
Return speed	200 mm/seg. 7.87 in/s	200/200 mm/seg. 7.87 in/s	200 mm/seg. 7.87 in/s	200/200/180/160/130 mm/seg. 7.87/7.87/7/6.3/5 in/s	200/200/200/160/130 mm/seg. 7.87/7.87/7.87/6.3/5 in/s	180/180/150/120 mm/seg. 7/7/5.9/4.7 in/s	180/180/140/120 mm/seg. 7/7/5.5/4.7 in/s
Motor power	3 kW	5,5/5,5 kW	11 kW	15/15/15/15/15 kW	18,5/18,5/18,5/18,5/18,5 kW	30/30/30/30 kW	30/30/30/30 kW
Oil capacity**	25 lit.	40/40 lit.	10 lit.	100/100/100/100/100 lit.	150/150/150/150/150 lit.	200/200/200/200 lit.	200/200/200/200 lit.
Approximate weight	3 ton.	3,8/4,2 ton.	8,5 ton.	8,5/10/12,3/14,6/15,9 ton.	10/12,1/15/18,7/22 ton.	16,1/20/27/33 ton.	18,5/22/28,7/35 ton.
