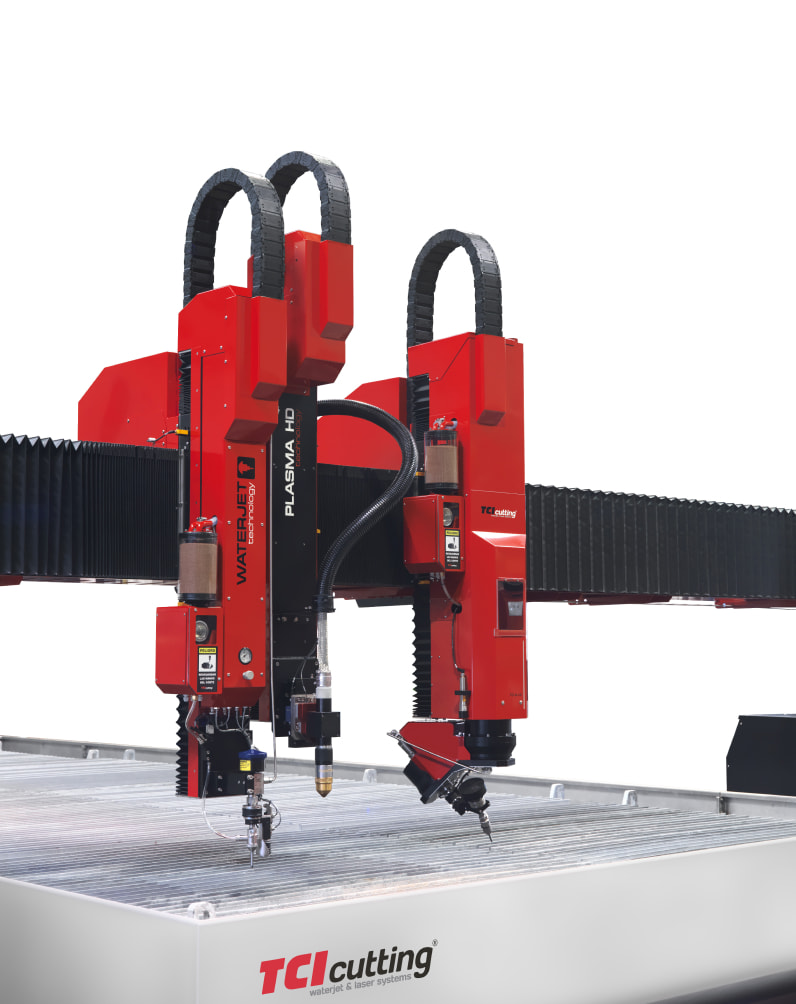

BP-H Series

OUR MOST COMPACT MACHINE

Flexibility and adaptability are key to competitiveness in the market. Precision 3D cutting. This series is characterized by having a maximum height adjustment in its Z axis up to 500 mm. For unique versatility. Infinite growth possibilities.

3D cutting option

3D cutting option

Modular

Modular

Expandable in length and scalable in resources. Clean and quiet working conditions. Customization.

XXL Format

XXL Format

Taylor-made format.

Technical
Specifications

FeatureBP-H 2040BP-H 3015BP-H 3020BP-H 3060BP-H 3080BP-H 30120BP-H 4060BP-H 4080BP-H 40120
Maximum thickness of the part200 mm200 mm200 mm200 mm200 mm200 mm200 mm200 mm200 mm
Maximum permitted load790 kg/m2790 kg/m2790 kg/m2790 kg/m2790 kg/m2790 kg/m2790 kg/m2790 kg/m2790 kg/m2
Number of cutting heads1 to 41 to 41 to 41 to 41 to 41 to 41 to 41 to 41 to 4
Maximum number of bridges444444444
Simultaneous max positioning speed85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min85 m/min
Maximum cutting speed20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min20 m/min
Machine tolerance according to VDI / DGQ 3441± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m± 0.05 mm/m
Repetition accuracy± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm± 0.025 mm
Dimensions2000x4000x500 mm3000x1500x500 mm3000x2000x500 mm 3000x6000x500 mm3000x8000x500 mm3000x12000x500 mm4000x6000x500 mm4000x8000x500 mm4000x12000x500mm
MODELSDimensions
BP-H 20402000x4000x500 mm
BP-H 30153000x1500x500 mm
BP-H 30203000x2000x500 mm
BP-H 30603000x6000x500 mm
BP-H 30803000x8000x500 mm
BP-H 301203000x12000x500 mm
BP-H 40604000x6000x500 mm
BP-H 40804000x8000x500 mm
BP-H 401204000x12000x500mm

STATE-OF-THE-ART
TECHNOLOGY

WHY
TCI CUTTING

Intelligent<br>Software

Intelligent
Software
Autonomous decision making.

Taylor-made<br>automation

Taylor-made
automation
Efficiency. One client, one solution.

Predictive<br>technical assistance

Predictive
technical assistance
Maximum efficiency without workdowns. Expert team.

TCI<br>Training

TCI
Training
Taylor-made training certificate programs.

Implementation<br>of productive processes

Implementation
of productive processes
Optimisation. Full integration. Industry 4.0.
