Laser Cutting Machines – Smartline L-Power Laser Cutting System

Technical Data laser cutting machines

MODELS

POWER – RESONATOR

DIMENSIONS

Smartline L-Power 3015 Rofin. Power output from 100 watts to 600 watts X=3.000mm Y=1.500mm Z=80mm

CHARACTERISTICS

TECHNICAL DATA

Maximum permitted load 950 Kg/m2
Number of Laser cutting heads 1
Maximum Simultaneous Positioning Speed 160m/min
Maximum axial acceleration 9,8 m/s2 (1G)
VDL/DGQ3441 machine tolerance +-0,05mm/m
Repeatability precision +-0,025mm/m
Power output From 100 to 600 watts
Smoke extraction system Only Optional in powers of 100-600 watts
Cooling system Only Optional in powers of 100-600 watts
Automatic table exchanger Only Optional in powers of 100-600 watts
Manual table exchanger Only powers of 100 to 600 watts
Automatic loader and unloader Optional

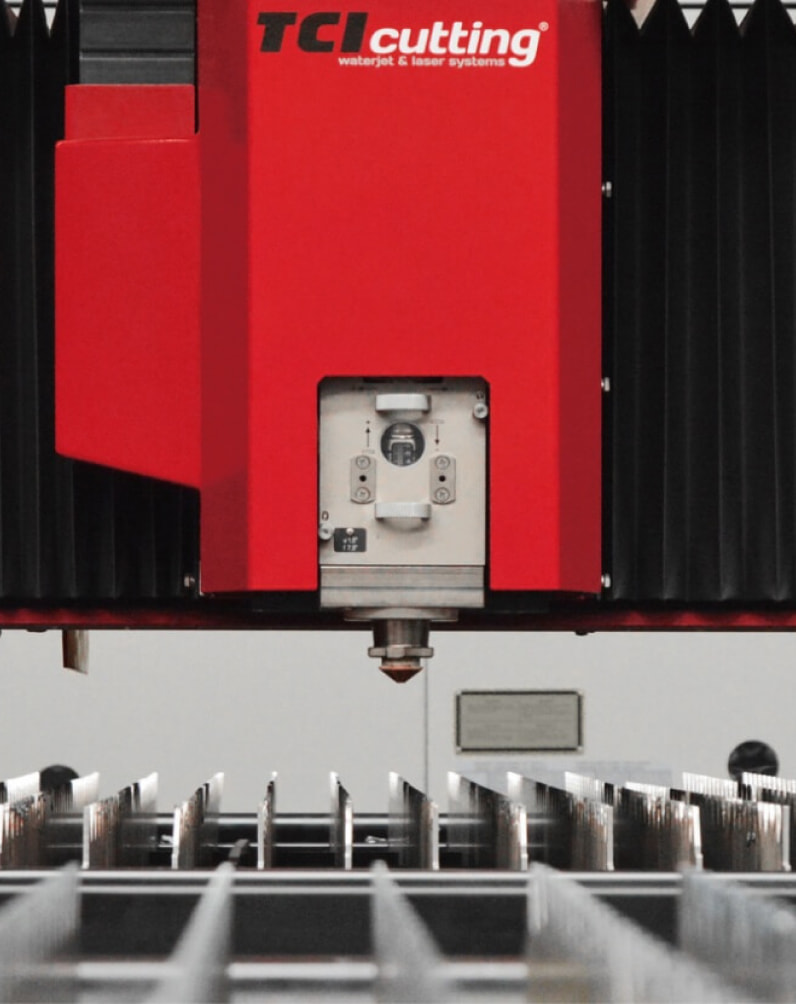

Smartline L-Power

These laser cutting machines are fitted with sealed resonators and have a power output from 100 watts to 600 watts.

The Smartline L-Power series laser cutting system offers excellent cutting quality and low production costs.

MODEL TYPE

MODEL

POWER

Smartline L-Power 3015 Rofin. Power output from 100 watts to 600 watts

MODEL

DIMENSIONS

Smartline L-Power 3015 X=3.000mm Y=1.500mm Z=80mm

TECHNICAL DATA

DATA

VALUES

Maximum load 950 Kg/m2
Heads 1
Maximum Simultaneous Positioning Speed 160m/min
Maximum axial acceleration 9,8 m/s2 (1G)
VDL/DGQ3441 machine tolerance +-0,05mm/m
Repetition precision +-0,025mm/m
Power output From 100 to 600 watts
Smoke extraction system Only Optional in powers of 100-600 watts
Refrigeration system Only Optional in powers of 100-600 watts
Automatic interchangeable table Only Optional in powers of 100-600 watts
Changing table manually Only powers of 100 to 600 watts
Automatic loader and unloader Optional
Máquina de corte por láser Smartline L-Power

360º View

SEALED CO2 Resonator

The revolutionary principle of the SC series of sealed lasers, with outputs ranging from 100 to 600 watts, completes the powerful CO2 laser range available from ROFIN. The SC lasers are completely sealed so there is no need for gas recirculation equipment such as vacuum pumps or pressure control systems. The interior gas only has to be changed every 16,000 hours of operation, resulting in minimal costs. The complete range of SC lasers is based on a unique design and the resonator produces the laser light using linear polarization.

Power and precision are the defining characteristics of the SC series laser cutting system and their application is universal. Lasers are lightweight and extremely robust, making it easy to integrate them with machines and equipment.

Resonador laser sellado CO2

The sealed CO2 resonator concept

The mix of gases remains static between the mirrors (3 and 7) and the excitation plates (9).  These plates or electrodes excite the CO2 and generate the laser beam between the mirrors.  In turn these plates cool the gases thus eliminating the traditional requirement  for turbines and heat exchangers.

detalle Resonador laser CO2 sellado

rofin-baasel-espana-tratamiento-con-laser-tratamiento-con-laser-principio-397511-FGR

  • 1. Laser beam
  • 2. Beam shaping unit
  • 3. Output mirror
  • 4. Cooling water
  • 5. RF (radio frequency) excitation
  • 6. Water cooled refrigeration
  • 7. Rear mirror
  • 8. RF-excited discharge
  • 9. Wave guiding electrodes

RESONATOR Rofin

SC x10

SC x20

SC x40

SC x60

Power (W) 100 200 400 600
Recommended cooling power (kW) ≥2 ≥5 ≥7 ≥14
Electrical supply (kW) 2,1 4,5 7,5 15
Maximum sheet thickness:
Steel (mm) 1 3 4 6
Stainless Steel (mm) 0,5 2 3 4

Tecnological advantages of the laser cutting system

Unbeatable accessibility

laser cutting machines

  • Semi-automated loading and unloading
  • Possibility to install cutting table exchanger in front of the laser cutting machine
Minimal maintenance

Máquina de corte por láser

  • Minimal beam path and resonator maintenance after 20,000 work hours
  • Excellent cutting stability over the entire table, due to the installation of the resonator on the cutting bridge
Variety of materials

laser cutting system

  • Possibility to install a special cutting table for wood or other materials
Optimized layout

Máquina de corte por láser

  • Laser cutting system, Fly Piercing, Fly Cutting
  • Zone programmable smoke extraction system
  • Compact design with optimized layout
Characteristics of the TCI Cutting Smartline L-Power series of laser cutting machines
