3D cutting option Infinite loop without rewinding

Modular Expandable in length and scalable in resources. Clean and quiet working conditions. Customization

XXL Format Tailor-made format

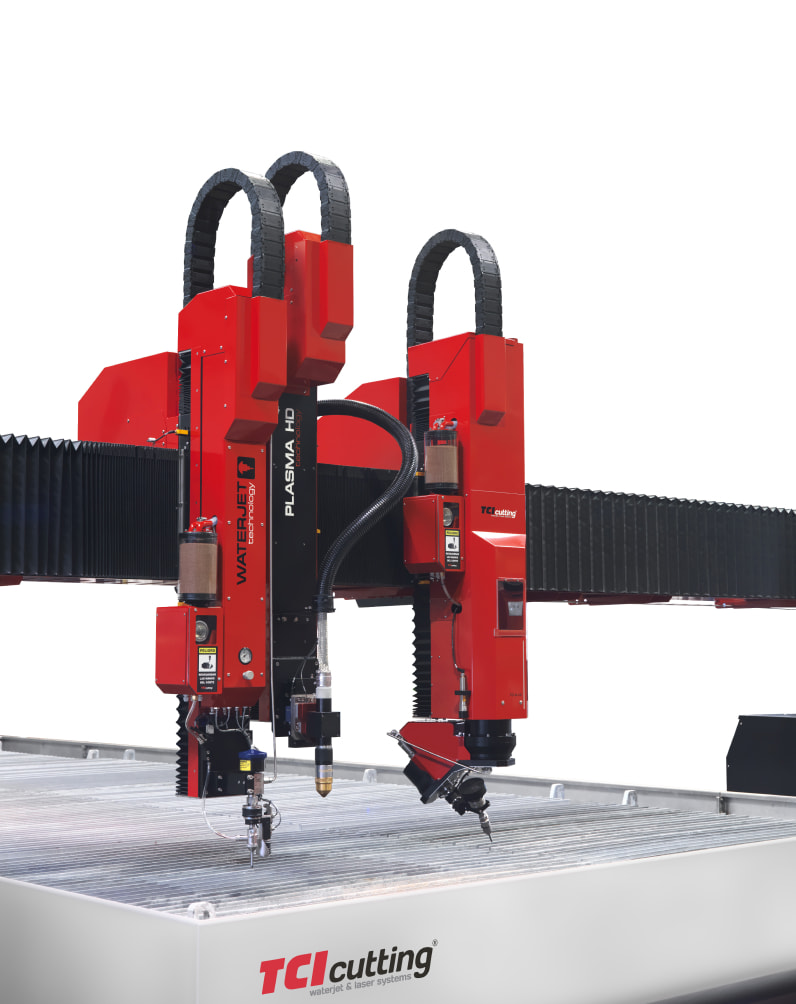

BP-H®

3D waterjet machine

more information

WATERJET CUTTING

3D XXL FORMAT

Flexibility and adaptability are key to competitiveness in the market. Precision 3D cutting. This series is characterized by having a maximum height adjustment in its Z axis up to 700 mm For unique versatility. Infinite growth possibilities.

We advise you

Get advice on BP-H® with our specialized team.

CONTACT

Technical Data
MODELS

Feature	BP-H 2040	BP-H 3015	BP-H 3020	BP-H 3060	BP-H 3080	BP-H 30120	BP-H 4060	BP-H 4080	BP-H 40120
Maximum thickness of the part	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in	200 mm 7.87 in
Maximum permitted load	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²	790 kg/m² 161.85 lb/ft²
Number of cutting heads	1 to 4	1 to 4	1 to 4	1 to 4	1 to 4	1 to 4	1 to 4	1 to 4	1 to 4
Maximum number of bridges	4	4	4	4	4	4	4	4	4
Simultaneous max positioning speed	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min	85 m/min 278.87 ft/min
Maximum cutting speed	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min	20 m/min 65.62 ft/min
Machine tolerance according to VDI / DGQ 3441	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft	± 0.05 mm/m ±2 mils/ft
Repetition accuracy	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils	± 0.025 mm ±1 mils
Dimensions	2000x4000x500 mm 80x160x20 in	3000x1500x500 mm 120x60x20 in	3000x2000x500 mm 120x80x20 in	3000x6000x500 mm 120x240x20 in	3000x8000x500 mm 120x320x20 in	3000x12000x500 mm 120x480x20 in	4000x6000x500 mm 160x240x20 in	4000x8000x500 mm 160x320x20 in	4000x12000x500mm 160x480x20 in

MODELS	Dimensions
BP-H 2040	2000x4000x500 mm 80x160x20 in
BP-H 3015	3000x1500x500 mm 120x60x20 in
BP-H 3020	3000x2000x500 mm 120x80x20 in
BP-H 3060	3000x6000x500 mm 120x240x20 in
BP-H 3080	3000x8000x500 mm 120x320x20 in
BP-H 30120	3000x12000x500 mm 120x480x20 in
BP-H 4060	4000x6000x500 mm 160x240x20 in
BP-H 4080	4000x8000x500 mm 160x320x20 in
BP-H 40120	4000x12000x500mm 160x480x20 in
